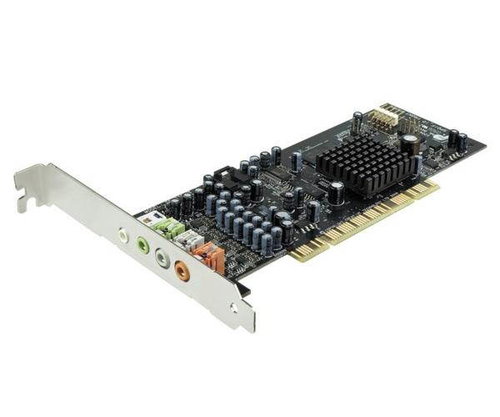

Creative SOUND BLASTER X-Fi XtremeGamer
Creative SOUND BLASTER X-Fi XtremeGamer
Discontinued
Creative SOUND BLASTER X-Fi XtremeGamer
Top rewarding sound card using the X-Fi technology, which allows for faster and deeper gaming audio experience for most users.It provides cutting-edge solutions for modern games, listening to music or play films and professional work is sound.Fully 24-bit resolution with a sampling frequency of up to 96 kHz is a guarantee of perfect sound without bias in all conditions and the advantage is also a very low level of noise - of a signal / noise is up to 109 dB!
Extremely powerful audio processor X-Fi is able to produce in normal headphones ultra surround sound X-Fi CMSS-3D and accelerating Direct X, OpenAL and EAX 5th0This is achieved frame rate and improves the film sound.24-bit X-Fi Crystalizer significantly improves low quality audio and improves the quality of games, music in MP3, DivX movies and television translates to 24-bit sound quality.Small height of the card it ideal for Media Center PCs.It has an optical digital output for connection to home cinema systems.Certificate of THX and Dolby and DTS decoding provide an excellent level of film sound.
The card is in the classic to the implementation of internal PCI bus, the audio output is suitable for the speaker system to 71 (supports but also older systems 5th1 and 61).For maximum flexibility can work in three modes:
Entertainment Mode is ideal for listening to music or watching movies - a unique technology uses 24-bit Crystalizer to improve the quality of music or sound in the movies, thanks to the use of modern digital audio algorithms deliver fullness, highlighting the height and depth, and dispose of him and artifacts caused by compression system CMSS - 3D, which adjusts the sound for normal stereo headphones, so that was like listening to the quality reprosystems.Features SuperRip then allow to play audio CD into the computer for subsequent listening in high quality.
Gaming Mode is designed for playing games.Thanks to the use of algorithms can be optimized to achieve up to 15% compared to accelerate the sound card integrated on the motherboard, while maintaining full audio quality standard X-Fi.The EAX ADVANCED HD 5th0 guarantees perfect spatial effects and highly realistic sound.
Mode Audio Creation ensures maximum quality of the recording and creating music.It allows high-quality sound recordings for conversion to any sampling rate at 136 dB THD, use digital recording in the sampling frequency from 44.1 to 96 kHz or ASIO recording with extremely low latency 1 millisecond, and using up to eight 24-bit hardware effects.Also available samplovací the 24-bit sound and 3DMIDI.
The card offers all important interface to connect the speaker system to 71, as well as a microphone, headphones or a further source of the sound recording, the design of the digital input or an internal interface AUX and AD_Link connection panel input / output (must be purchased separately).
Main features:
24-bit A / D conversion of analog signals in the 96 kHz sampling frequency
24-bit D / A conversion of digital to analog output entry 7th1 at 96 kHz sampling frequency
24-bit D / A transfer of digital entry into the analog stereo output at 192 kHz sampling frequency
Records with resolution 16/24 of bits and sampling frequency 8 / 11025 / 16 / 22.05 / 24 / 32 / 44.1 / 48 / 96 kHz
Support for ASIO 2nd0 in 16-bit/44, 1 kHz, 16-bit/48 kHz, 24-bit/44, 1 kHz, 24-bit/48 kHz and 24-bit/96 kHz
Support for Enhanced sound with a 24-bit resolution
X-Fi chip:
Production process:130 nm
The number of transistors:51 100 100
Working frequency:400 MHz
Performance:10 340 MIPS
Sound specifications:
Far be a signal-noise:109 dB (stereo / 71)
Harmonic distortion at 1 kHz:0.004%
Frequency range of surround sound (-3dB, 24-bit/96 kHz):<10Hz to 46 kHz
Frequency range of surround sound (-3dB, 24-bit/192 kHz):<10Hz to 88 kHz
Interface:
32-bit PCI
Inputs and outputs:
3.5 mm stereo FlexiJack - features 3-in-1, digital input, Line In, microphone
3rd 3.5 mm stereo jack Line Out (for stereo speaker system to 71)
Internal AUX_IN entry
AD_Link (26 pins) connector for X-Fi I / O panel
