Acer Nitro Intel Arc B580

Graphics Card - 12GB GDDR6, Intel ARC, PCI Express x8 4.0, 192Bit, DisplayPort 2.1 and HDMI 2.1, width 268 mm
Code:  NCa770pb6 Producer's Website:

Don't like the alternatives? Choose from the full product list

Acer Nitro Intel Arc B580

Are you thinking of buying a high-performance graphics card for an unmatched gaming experience when playing brand-new games? The Acer Nitro Intel Arc B580 graphics card with 12 GB of RAM is exactly what you're looking for.. With this graphics card, you will get excellent performance even when playing on max settings. for the connection of a screen. For this graphics card, the manufacturer chose the DisplayPort 2,1 and HDMI 2,1 interface for the connection of a monitor. The active cooling technology on this graphics card ensures notably low temperatures, even under load.

Graphics Card Acer Nitro Intel Arc B580 ...
Graphics Card Acer Nitro Intel Arc B580 ...

Acer Nitro Intel Arc B580 Gaming Graphics Card Key Features

  • Graphics card features the Intel Arc B580 graphics chip
  • Graphics card is suitable for playing the best and most advanced games on the market
  • Thermal design point: 205 W
  • Suggested minimum PSU performance: 600 W
  • Intel ARC Intel Arc B580 graphics card operating memory: 12 GB

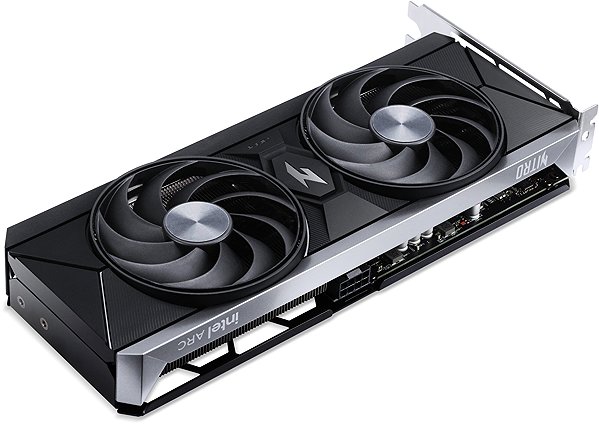

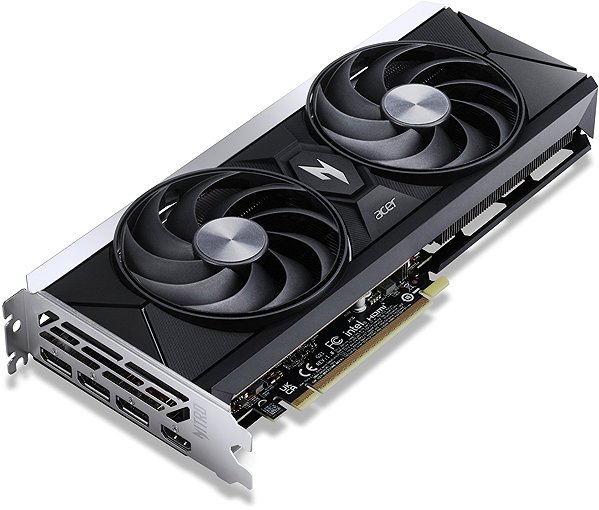

  • Graphics card cooling tech: Active

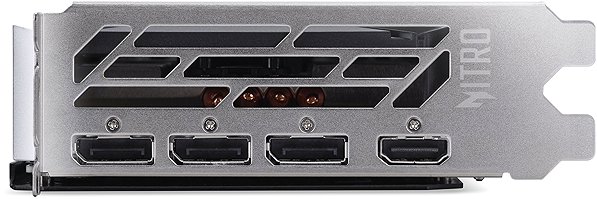

  • Graphics card display port interface: DisplayPort 2,1 and HDMI 2,1

Active cooling technology, such as that, which is found in this graphics card, is widely used chiefly because it's a safe and proven way to keep the component temperature low.

Graphics Card Acer Nitro Intel Arc B580 ...
Graphics Card Acer Nitro Intel Arc B580 ...

Graphics Card Has 12 GB GDDR6 RAM

The Acer GDDR6 type memory, which is on this graphics card, is the most advanced memory type available. Unlike GDDR5, it provides greater capacity and two times better performance. In the upcoming months and years, this technology is expected to become mainstream among GPU memory.

Specifications

Width
268 mm
Height
40 mm
Depth
113 mm
Chip manufacturer
Intel ARC
Model designation
Intel Arc B580

Dimensions

Width
268 mm
Height
40 mm
Depth
113 mm

Chip

Chip manufacturer
Intel ARC
Model designation
Intel Arc B580

Performance & usage

Use
Game playing

Memory

Memory type
GDDR6
Bus width
192-Bit

Interface

PC connection
PCI Express x8 4.0

Technology

DirectX version
12

Cooling system

Cooling type
Active
number of fans
2 ×

Consumption

TDP
205 W
Recommended power sources
600 W
More Specifications

Acer Czech Republic s.r.o., Na Hřebenech II 1718/10, 140 00 Praha 4, Česká republika, https://www.acer.com/cz-cs

Acer has focused on developing and selling its branded products in the field of information technology. Acer offers its products in Europe, Middle East, Africa, the Americas, Asia Pacific, China and Taiwan. The company was founded in 1976 and the milestones include the takeover of the IT division of the American Society of Texas Insrumets (1997) or the takeover of Gateway and Packardbell (2008). Acer Group is among the four largest producers of personal computers globally and employing over 7,400 employees. The current success of Acer's mission is to break the barriers between people and technology.

Note:

This product is not an independently functional unit and may require professional installation.

Specifications can be changed without notice. Images are for illustrative purposes only.
