Name: JTS RU-8012DB/2xRU-850LTH
Brand: JTS
SKU: APC023
Availability: Discontinued
Rating: 0 (0 reviews)

All from JTS

JTS RU-8012DB/2xRU-850LTH - Wireless System - Main image

Wireless System - wideband - two-channel diversity receiver RU-8012DB, 2x handheld transmitter (dynamic microphone) RU-850LTH, UHF, BNC detachable antennas, 6 groups of 22 channels, frequency adjustment in the interval of 0.025MHz, 1441 frequencies in total, REMOSET U system to synchronize receiver and transmitter settings

Show full description

Accessories

Code: APC023 Producer's Website:

Don't like the alternatives? Choose from the full product list

Wireless Systems

Wireless Systems JTS

Help and manuals
Specifications
Photos & Videos 3
Accessories and suggested products

JTS RU-8012DB/2xRU-850LTH Discontinued

JTS RU-8012DB/2xRU-850LTH

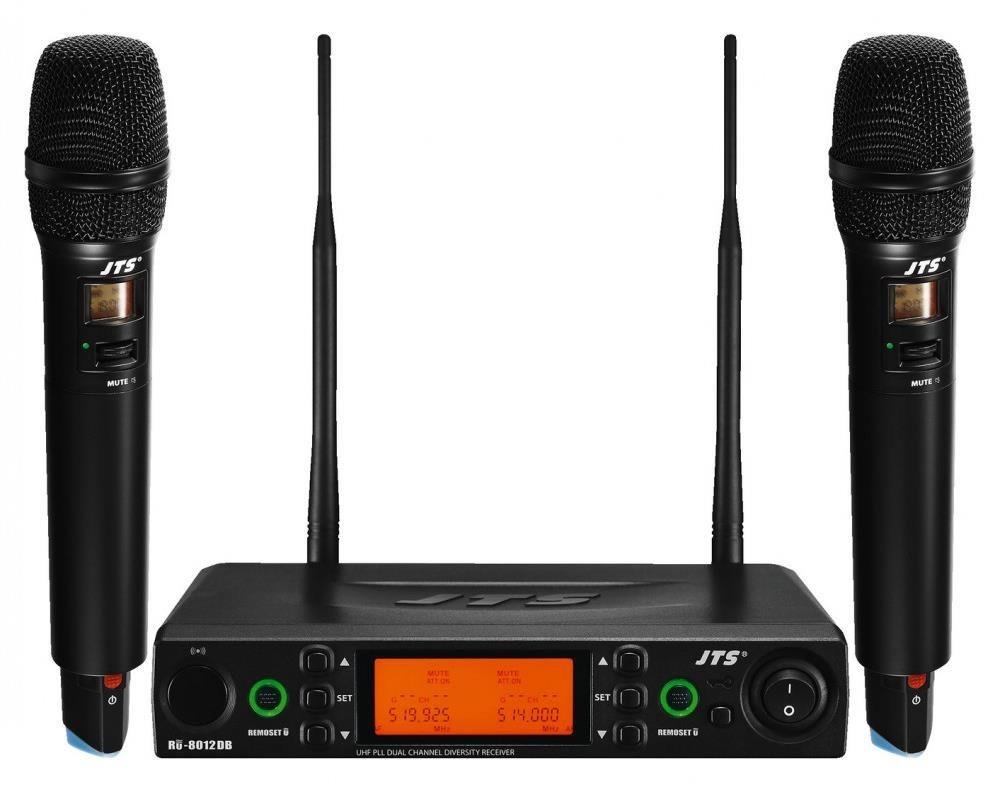

JTS RU-8012DB / 2x RU-850LTH is a complete set that includes a two-channel receiver RU-8012DB and two handheld transmitters (microphones) RU-850LTH. RU-8012DB dual-channel diversity receiver with wideband technology is equipped with detachable BNC antennasami for easy installation and signal matching, autoscan function for automatic search of the best channels and backlit LCD display for easy monitoring of transmission status and other important information. The REMOSET ULTRASONIC system allows synchronization of settings between the receiver and transmitter, which makes it easier to use and minimizes signal interference.

Key Features of the JTS RU-8012DB/2×RU-850LTH Wireless System

JTS RU-8012DB/2×RU-850LTH Wireless System offers superior audio performance
Consists of a two-channel receiver and two microphones
Wireless receiver RU-8012DB has 6 groups of 22 channels
It is equipped with two symmetrical XLR connectors and two unsymmetrical 6.3mm jacks
The RU-850LTH cardioid dynamic microphone offers both LCD display and LED indicators

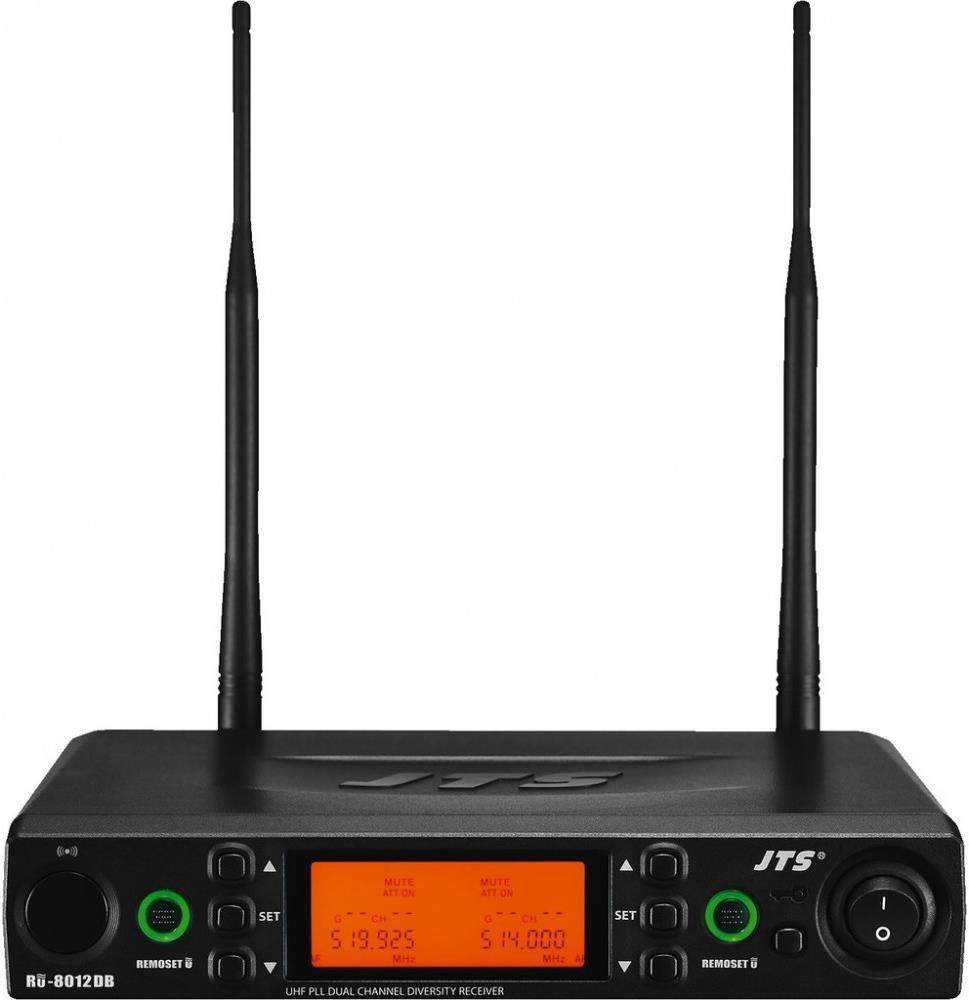

Receiver RU-8012DB

The RU-8012DB receiver is a dual-channel, diversity receiver with UHF band and PLL synthesis that offers a wide range of transmission frequencies from 823 to 865 MHz. It contains 6 groups of 22 channels, giving users a choice of a total of 1441 individual frequencies. By adjusting the frequency in 0.025 MHz intervals, the signal can be fine-tuned for maximum performance and minimal interference. The receiver is equipped with a BNC antenna type and backlit LCD display for easy readability even in challenging lighting conditions. The power supply for the antenna amplifier is provided by a DC12-15V/100mA adapter, while the receiver itself is powered by a DC12-15V/300mA adapter. Output jacks include 2× symmetrical XLR and 2× unbalanced 6.3mm Jack for easy connection to other audio equipment. With compact dimensions of 212 × 38 × 144 mm (W×H×D) and a weight of 508 g, the receiver is easily portable.

Handheld transmitter (microphone) RU-850LTH

The RU-850LTH handheld transmitter is a dynamic microphone with cardioid directional characteristics designed for professional wireless audio applications. The transmitting power of 10/50 mW guarantees reliable and stable wireless audio transmission even over longer distances. REMOSET U technology makes it easy to synchronise the frequency of the transmitter with the receiver. Frequency response from 50 Hz - 16 kHz ensures a wide range of audio frequencies with faithful and accurate sound reproduction. With a maximum sound pressure of 148 dB, this microphone is suitable for capturing any audio event, from musical performances to public speeches. Its robust plastic housing provides reliable protection against shock and wear, while its compact dimensions and lightweight design ensure convenient and easy use. It is powered by 2 standard AA batteries. LCD display with additional LED indicators allows easy and clear monitoring of battery status and operating functions in real time.
