Lian Li SP750

5 1 rating
PC Power Supply - 750W, SFX, 80 PLUS Gold, efficiency of 92%, 3 piece(s) PCIe (8-pin / 6+2-pin), 8 × SATA, detachable cables, thermal speed control, power switch, zero RPM mode and dual EPS, 92mm fan, full modular, depth of 100mm
Code:  LLsp750 Producer's Website:

Don't like the alternatives? Choose from the full product list

Lian Li SP750

PC Power Supply Lian Li SP750 Lateral view

No computer, workstation, or server can operate without a good PSU. When building a new PC, make sure to take your time when choosing this particular component as well. Aside from supplying power to the PC, it can reduce electricity consumption and help extend the service life of your computer components. The 750W Lian Li SP750 ensures safe transfer of mains electricity to individual circuits, which then power the used components. The ATX PSU with a 750 W is an ideal solution for small Mini ITX computers. The LIAN LI unit features a 92mm fan that lowers the temperature and improves its service life. The top noise level never gets over 31,8 dB. You can cut the electricity using a power switch. Every computer PSU features a label that tells you how efficient it is when it comes to input power. The 80 PLUS Gold certification means its effectiveness reaches 92 %. Modular cables keep your PC case neat and tidy.

Key Features of the 750W Lian Li SP750 PSU

  • The PC Power Supply is 80 PLUS Gold certified, which guarantees an efficiency of 92 %
  • The 92mm fan keeps the noise level under 31,8 dB
  • Thermal speed control keeps the Lian Li SP750 PSU from dangerously high temperature spikes
  • It also includes a 8× serial ATA connector for connecting a SSD, HDD, or a Blu-Ray drive
  • PC protection: overvoltage protection (OVP), undervoltage protection (UVP), overcurrent protection (OCP), short-circuit protection (SCP), over-temperature protection (OTP) and dual OPP

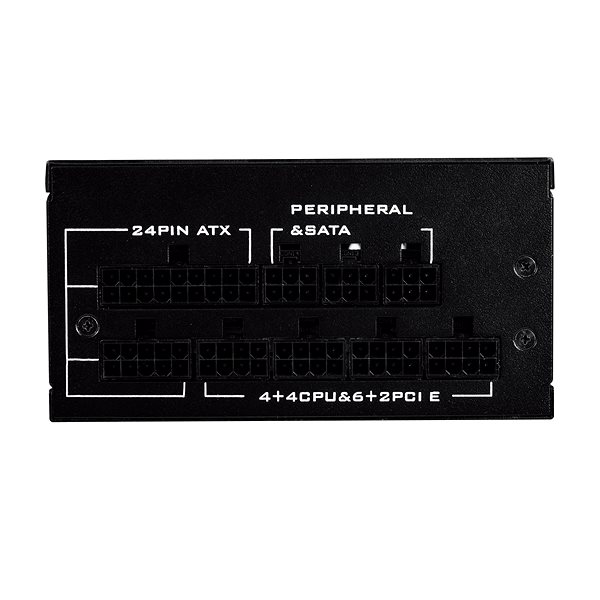

PC Power Supply Lian Li SP750 Connectivity (ports)

Specifications

Performance
750 W
Format
SFX
Modularity
Full
Features and functions
Detachable cables, Dual EPS, Power switch, Thermal speed control, Zero RPM mode
Type of protection
Dual OPP, Overcurrent protection (OCP), Over-temperature protection (OTP), Overvoltage protection (OVP), Short-circuit protection (SCP), Undervoltage protection (UVP)

Performance and format

Performance
750 W
Format
SFX
Modularity
Full

Equipment

Features and functions
Detachable cables, Dual EPS, Power switch, Thermal speed control, Zero RPM mode
Type of protection
Dual OPP, Overcurrent protection (OCP), Over-temperature protection (OTP), Overvoltage protection (OVP), Short-circuit protection (SCP), Undervoltage protection (UVP)

Efficiency

Certification
80 PLUS Gold
Performance
92 %

Connectors

Connectors
ATX 20+4pin, CPU 8pin / 4+4pin, Molex 4pin, PCI-E 8pin / 6+2pin, SATA 15pin
Number of EPS/CPU 4+4pin
1
PCI Express 8pin / 6+2pin
3pc(s)
Number of serial ATA 15-pin
8pc(s)
Number of molex HDD 4-pin
4pc(s)

Cooling system

Fan size
92 mm
Maximum loudness
31.8 dB

Dimensions

Width
125 mm (12.5 cm)
Height
63.5 mm (6.35 cm)
Depth
100 mm (10 cm)
Weight
3.1 kg (3,100 g)
More Specifications
Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
