ASROCK B650M PG RIPTIDE
Motherboard - AMD B650, AMD AM5 socket, 2× PCIe x16, 2× PCIe x1, 4× DDR5 6200MHz (OC), 4× SATA III, 2× M.2, USB 3.2 Gen 2, RJ-45 (LAN) 2,5Gbps, 7.1 sound card channel(s), RGB backlighting, form factor: mATX (Micro ATX)
Show full description
99.90 €
Shop faster with pickup at AlzaBox or in-store.
Add to list
Warranty 36 months
Code:
ASb650mpr
Producer's Website:
ASROCK B650M PG RIPTIDE
99.90 €
Currently Unavailable

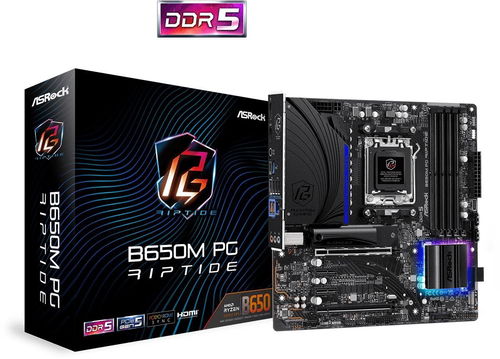

ASROCK B650M PG RIPTIDE
The ASROCK B650M PG RIPTIDE motherboard, with its AMD B650 chipset and AM5 socket in a Micro ATX format, is a powerful solution for builds using AMD Ryzen™ 9000, 8000, and 7000 series processors. It features an advanced 12+2+1 phase power system with Dr.MOS technology, four DDR5 memory slots supporting frequencies up to 7200MHz when overclocked, and two M.2 slots, one of which supports the PCIe Gen5 standard. The board offers comprehensive connectivity, including a 2.5Gb/s network interface, two USB 3.2 Gen2 ports (both Type-A and Type-C), and HDMI 2.1 and DisplayPort 1.4 video outputs, complemented by a Realtek ALC897 7-channel audio codec with Nahimic Audio technology.
AMD B650
Chipset
AMD AM5
Socket
mATX (Micro ATX)
Format
DDR5
Memory type
4×
Number of RAM slotsKey features of the ASROCK B650M PG RIPTIDE motherboard
- Support for AMD Ryzen 9000, 8000 and 7000 series processors with advanced AM5 architecture and AMD EXPO technology
- Powerful 12+2+1 phase Dr.MOS power design on a six-layer PCB with a 2oz copper layer ensures stable operation even when overclocking
- 4× DDR5 slots with dual-channel mode and support for frequencies up to 7200+ MHz (OC), including a protective circuit to prevent damage during installation
- Fast storage with one PCIe Gen5 x4 Blazing M.2 slot with multi-layer heatsink and one PCIe Gen4 x4 Hyper M.2 slot
- High-speed connectivity with 2.5Gb/s Phantom Gaming LAN, and USB 3.2 Gen2 Type-A and Type-C ports with speeds up to 10Gb/s
- Nahimic Audio with Realtek ALC897 7.1 HD codec and POLYCHROME RGB lighting with synchronisation for LED strips and accessories
Optimised power system
The board uses an advanced Dr.MOS solution, which integrates power stages optimised for synchronous buck voltage regulation. Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, resulting in better thermal characteristics and superior performance. The 12+2+1 phase power system is implemented on a six-layer PCB with a 2oz copper layer, which guarantees a stable power supply even for demanding AMD Ryzen™ processors.
Memory support with a protective circuit
Due to the specific electrical architecture of DDR5 modules, there is a risk of damage if power is incorrectly disconnected during memory installation or removal. That's why ASROCK has implemented a protective circuit on every DDR5 motherboard, which significantly reduces the risk of damaging memory modules. The board supports dual-channel mode with frequencies up to 7200MHz when overclocking and is compatible with AMD EXPO™ technology for easy memory performance optimisation.
High-speed storage
The board features two M.2 slots for ultra-fast SSDs. The Blazing M.2 slot supports the PCIe Gen5 x4 standard, offering double the bandwidth of the previous generation with a transfer speed of up to 128GB/s, which allows you to take full advantage of future advanced SSDs. The second Hyper M.2 slot supports PCIe Gen4 x4. Both slots are equipped with multi-layer heatsinks and anti-drop screws for easy and secure installation. Four SATA III ports are available for traditional data storage.
Connectivity and networking
The motherboard offers the intelligent Phantom Gaming 2.5Gb/s LAN platform, which provides up to 2.5× more bandwidth than standard Gigabit Ethernet. It automatically detects and prioritises gaming traffic over other network traffic for smoother, lag-free performance. On the rear panel, you will find two USB 3.2 Gen2 ports (Type-A and Type-C) with transfer speeds of up to 10Gb/s and two USB 3.2 Gen1 ports.
Port layout
Storage
- Number of SATA III: 4
- Number of M.2: 2
- M.2 Slot - 1× M.2 PCI-E NVMe Gen5
- M.2 Slot - 1× M.2 PCI-E NVMe Gen4
- Features: RAID 0, RAID 1, RAID 10
USB ports
- Internal USB 2.0: 4 (2 headers)
- Internal USB 3.2 Gen 1: 5 (2 headers + 1 Type-C header)
- Rear USB 2.0: 4
- Rear USB 3.2 Gen 1: 2
- Rear USB 3.2 Gen 2 Type-A: 1
- Rear USB-C 3.2 Gen 2: 1
Graphics
- HDMI 2.1
- DisplayPort 1.4
- Graphics outputs: HDMI, DisplayPort
Sound
- Number of channels: 7.1
- Rear connectors: 3× 3.5mm Jack
Other
- Rear: BIOS Flashback button
- Power: 24-pin, 1× 8-pin, 1× 4-pin
- Cooling: Number of PWM FAN (4-pin) - 5, Water pump - 4-pin
- Internal: RGB LED (4-pin), Addressable LED (3 headers), Thunderbolt AIC connector, SPI TPM header
Choosing a motherboard
When choosing a motherboard (sometimes called a mainboard), it's important to pay close attention to the socket type, form factor, and chipset. These are the most crucial parameters that ensure the board is compatible with the processor, expansion cards, and other components. The specific socket determines your choice of processor, while the other connectors will dictate which additional components you need for your future computer.Specifications
AMD AM5
AMD B650
mATX (Micro ATX)
RGB backlight
DDR5
Format & functions
mATX (Micro ATX)
RGB backlight
Memory
DDR5
6,200 MHz
Design
dual-channel
Advanced parameters
AMD CrossFire Technologies, RAID controller, UEFI BIOS
Realtek ALC897
Connectors
DisplayPort 1.4, HDMI 2.1, Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2
M.2 PCIe 5.0, PCIe 4.0 x16, RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header
USB 2.0
USB 3.2 Gen 1 (USB 3.0)
USB 3.1 (3.1 gen2)
M.2 slots
Serial ATA III
Series
Series
Compatibility
Compatible processor generation
Colour
Colour
More Specifications
Note:
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
