will it works good with ryzen 7 7700x?
ASROCK B650M PRO RS
Motherboard - AMD B650, AMD AM5 socket, PCI Express 4.0, 2× PCIe x16, 4× DDR5 7200MHz (OC), 4× SATA III, 3× M.2, USB 3.2 Gen 2, RJ-45 (LAN) 2,5Gbps, 8ch audio, form factor: mATX (Micro ATX)
Show full description
129.90 €
Price Guarantee
Installment calculator
4,9%
interest
from 2.99 € monthly
Shop faster with pickup at AlzaBox or in-store.
Warranty 36 months
Code:
ASb650p1
Producer's Website:
- Help and manuals 2
- Specifications
- Photos & Videos 6
- Alternatives 8
- Accessories and suggested products
ASROCK B650M PRO RS
129.90 €
In stock > 5 pcs
Buy

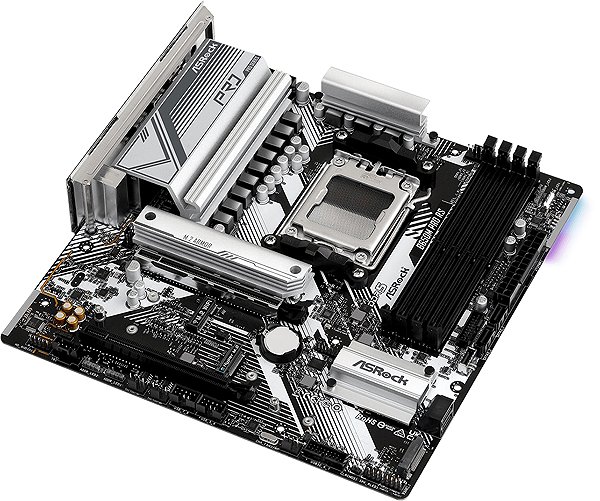

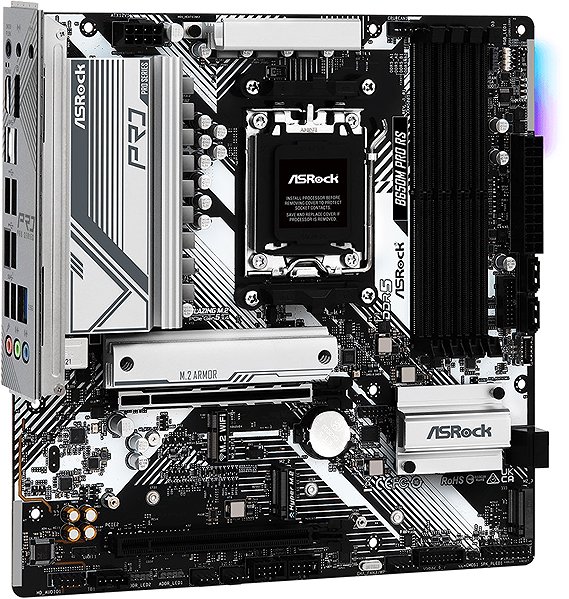

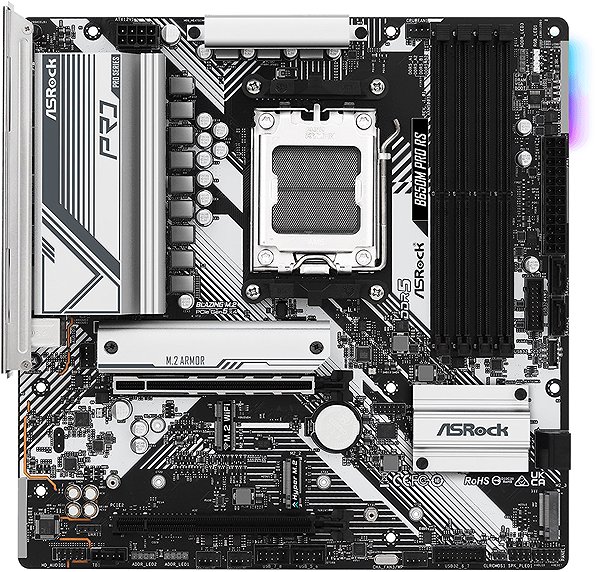

ASROCK B650M PRO RS
This ASROCK motherboard is built with the AMD B650 chipset with the AMD AM5 socket for the CPU. Classically, it is also equipped with a sound card which will handle 8,0 channels. It combines modest dimensions with a host of connectors to create an exemplary home PC setup. For this particular motherboard, you'll need a compatible mATX (Micro ATX) format computer case.
ASROCK B650M PRO RS Motherboard Key Features
- AMD AM5 socket and AMD B650 chipset
- ASROCK B650M PRO RS size: mATX (Micro ATX)
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
ASROCK B650M PRO RS Motherboard Connectivity
RAM is something you obviously can't do without , so this ASROCK motherboard is equipped with 4 RAM slots. You can make use of DDR5 type DIMM operating memory. You can attach them in dual-channel mode. The motherboard supports modules with a clock speed of up to 7200 MHz.
ASROCK B650M PRO RS Connectors
The motherboard accommodates 2 graphics cards with PCI Express 16x slots. The internal interface is also equipped a total of 3 popular M.2 connectors. In terms of USB adaptors, it has got 4 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports. You'll also be happy to find it has TPM for better security, a very impressive RGB LED Header, and Thunderbolt
- The motherboard has an integrated Realtek ALC897 sound card

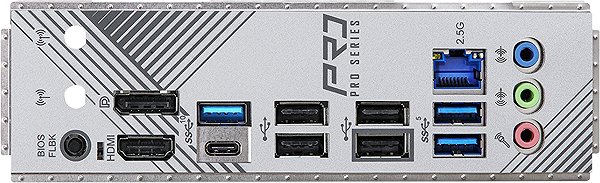

- Supported external communication interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, M.2 PCIe 5.0, PCIe 4.0 x16, PCIe 3.0 x4 and Serial ATA III
- The motherboard supports RAM modules with a clock speed of up to 7200 MHz
- Serial ATA III: 4 ×
Specifications
AMD AM5
AMD B650
mATX (Micro ATX)
For CPU with integrated GPU, Integrated network card, Integrated sound card, PCI Express 4.0
DDR5
Format & functions
mATX (Micro ATX)
For CPU with integrated GPU, Integrated network card, Integrated sound card, PCI Express 4.0
Memory
DDR5
7,200 MHz
Design
dual-channel
Advanced parameters
Realtek ALC897
Connectors
DisplayPort 1.4, HDMI 2.1, Jack, RJ-45 (LAN) 2.5Gbps, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2
M.2 PCIe 5.0, PCIe 3.0 x4, PCIe 4.0 x16, RGB LED Header, Serial ATA III, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header
USB 2.0
USB 3.2 Gen 1 (USB 3.0)
USB 3.1 (3.1 gen2)
M.2 slots
Serial ATA III
Compatibility
Compatible processor generation
Colour
Colour
More Specifications
Note:
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
