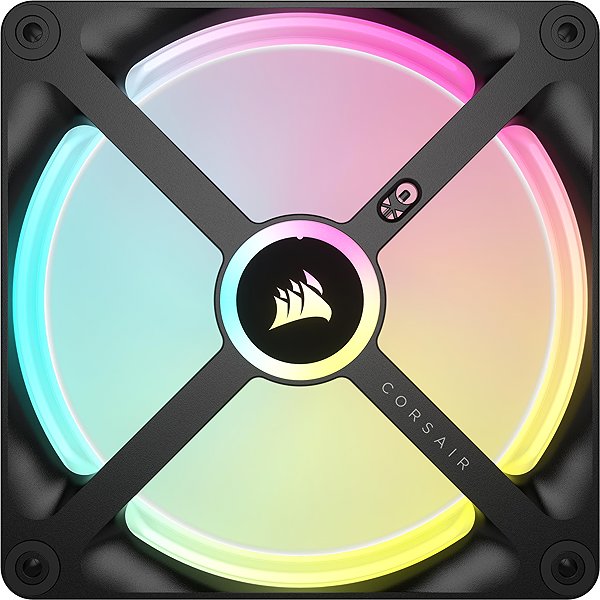

Corsair iCUE LINK QX140 RGB Fan Expansion Kit
Corsair iCUE LINK QX140 RGB Fan Expansion Kit
The Corsair iCUE LINK QX140 RGB expansion kit boosts your PC build's cooling performance and enhances its lighting within the iCUE LINK ecosystem. This fan changes the approach to PC building with technology that uses a single cable for connection and power, simplifying cable management. Each unit includes its own microcontroller and temperature sensor for precise and advanced control options. For full functionality, the fan requires connection to an iCUE LINK System Hub or the use of a separately sold cable, integrating it into a smart component network.
Key features of the Corsair iCUE LINK QX140 RGB Expansion Kit PC fan
- Component connection via a single cable with iCUE LINK technology
- Lighting provided by 34 RGB LEDs in two independent zones
- Magnetic dome bearing reduces operating noise
- Each fan has its own temperature sensor and microcontroller
- Zero RPM mode stops the fan from spinning under low load
- Software includes the special Time Warp lighting mode
Corsair iCUE LINK ecosystem
iCUE LINK technology fundamentally changes the way you build a computer. Instead of a tangle of cables from each fan, a single universal connector links multiple compatible devices into a single functional chain. This system transmits both power and data simultaneously, leading to a cleaner and neater installation inside the case. The ecosystem also automatically detects and configures components, speeding up the entire assembly process.
Intelligent PC fan control
The foundation for quiet and efficient operation is a magnetic dome bearing, which reduces friction and noise. With PWM speed control ranging from 400 to 2000 RPM, you get precise control over your cooling. The integrated temperature sensor in each fan provides accurate data for creating custom cooling curves. Under low load, the fan stops completely thanks to its support for Zero RPM mode.
Advanced RGB lighting
The lighting consists of a total of 34 individually addressable RGB LEDs, divided into two separate light zones. This configuration opens up extensive possibilities for customisation and creating smooth lighting transitions. The iCUE software introduces the exclusive Time Warp lighting mode, which creates an optical illusion of the fan blades standing still or spinning backwards.
Bearing type:
Magnetic Dome
Rotational speed:
400–2000 RPM
Airflow:
141.02m³/h
Maximum noise level:
37dB
Number of LEDs:
34
Connector:
4-pin PWM
