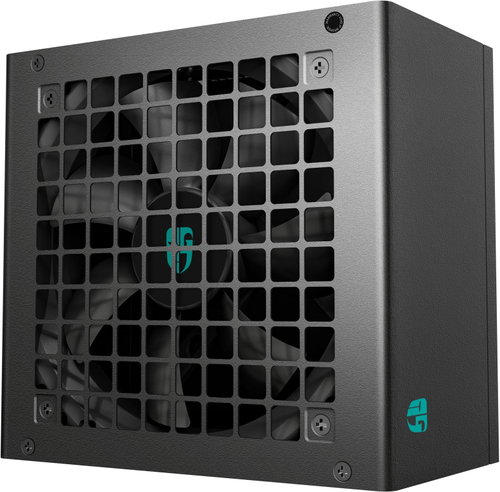

DeepCool GAMERSTORM PF750X
DeepCool GAMERSTORM PF750X
The DeepCool GAMERSTORM PF750X computer power supply, with a total output of 750W, provides a stable electric current to all hardware components inside your PC case. It converts AC power from the mains into the low-voltage DC power required by the motherboard, processor, and graphics card. A stable power supply prevents hardware damage and keeps the power within specified tolerances. The design complies with the modern ATX12V V2.52 specification for easy installation in both gaming and workstation computers.
750W
Power
ATX
Format
80 PLUS Bronze
Certification
Fully
Modularity
Key features of the DeepCool GAMERSTORM PF750X computer power supply
- Total power output of 750W and ATX format compatibility
- 88% efficiency at 50% load, meeting the 80 PLUS Bronze standard
- Internal circuitry with durable Japanese and Taiwanese capacitors
- Quiet 120mm fan with a Longlife HYB bearing
- Comprehensive protection with eight integrated safety circuits
- Dimensions of 8.6×15×14cm for easy installation
Choosing a power supply
When choosing a suitable PC power supply, power is a key parameter in addition to the format. This indicates the maximum number of watts the power supply can continuously provide to the components in the computer. It is advisable to use an online calculator to determine the optimal power based on your chosen components.
Efficiency with 80 PLUS Bronze certification
This power supply has an efficiency of 88% at half load, meeting the 80 PLUS Bronze standard. Low energy loss means less waste heat is generated and electricity is saved. Efficient operation reduces the temperature inside the computer case and helps save on costs. Lower thermal stress contributes to a longer lifespan for all installed components.
Stable voltage
The internal architecture uses modern Active PFC, Double Forward and DC-to-DC conversion topology. This technological combination effectively suppresses unwanted noise and maintains a stable voltage even during sudden load changes. The advanced topology prevents unexpected system crashes and helps maintain optimal electrical parameters. A stable power supply supports the smooth running of demanding applications.
Capacitors
The internal circuits contain selected Taiwanese and Japanese electrolytic capacitors. These components safely hold power for 16ms at 75% load, protecting the computer from short-term power outages. Japanese components have a four times longer operational lifespan and increase the overall reliability of the entire device. Using these parts helps maintain a stable power supply.
Safe operation
Integrated protection circuits protect expensive hardware from eight different risk conditions on the electrical grid. The system includes protections against overload, overvoltage, undervoltage, short circuit, overheating, overcurrent, surges, and no-load operation. The comprehensive protection system prevents the destruction of connected components and avoids serious hardware failures. These safety features meet strict global standards for operation in demanding conditions.
Cooling with a quiet fan
Excess heat is dissipated by a 120mm fan with a Longlife HYB bearing, which extends its operational lifespan by 30% compared to standard fans. The aerodynamic blade design efficiently directs airflow and eliminates noise even under high load. The cooling system operates with very low noise and maintains optimal operating temperatures for all internal parts. The fan can handle continuous 24/7 operation in environments with temperatures up to 40°C.
Wide input voltage range
The device operates reliably on electrical grids with voltages from 180V to 264V. It can cope with voltage fluctuations in the grid and prevents the entire computer from shutting down unexpectedly during a power drop. The wide voltage range facilitates stable operation even in areas with less stable power grids. The power supply supports operation under demanding conditions at full load and meets safety standards for altitudes up to 5000m.
Construction
The compact dimensions of 8.6×15×14cm make it easy to install in standard ATX computer cases. The solid metal chassis, weighing 1.96kg, reliably protects the sensitive internal components from external mechanical damage. The compact design leaves plenty of free space for hassle-free cable management.
Connectors
- 1× ATX 24-pin
- 2× CPU 4+4-pin
- 2× PCI-E 6+2-pin
- 6× SATA 15-pin
- 2× Molex 4-pin
- 2.52 ATX version
Package contents
- 1× PC power supply
- 1× Set of cables
80 Plus certification on the European market
The 80 Plus certification was created to objectively assess the efficiency of PC power supplies. It gives users a simple and clear way to compare different models. On the European market (where 230V is used), there are six levels of 80 Plus certification, each with set requirements for PC power supplies. Higher energy efficiency primarily means lower energy consumption.
| PC PSU load | Efficiency at 20% load | Efficiency at 50% load | Efficiency at 100% load |
|---|---|---|---|
| 80 PLUS | 82% | 85% | 82% |
| 80 PLUS Bronze | 85% | 88% | 85% |
| 80 PLUS Silver | 87% | 90% | 87% |
| 80 PLUS Gold | 90% | 92% | 89% |
| 80 PLUS Platinum | 92% | 94% | 90% |
| 80 PLUS Titanium | 94% | 96% | 94% |
Specifications
Performance and format
Equipment
Efficiency
Connectors
Cooling system
Specifications can be changed without notice. Images are for illustrative purposes only.
