Lze nahradit automat SA 10 časovým spínačem CS3C-4 při stejném zapojení v elektroinstalaci? Mám na mysli, zda může být přívod nulového vodiče do světel a tlačítek (spínání nulovým vodičem)? Děkuji za odpověď a zdravím Vás. Baudyš 731472660
Elektrobock CS3C-4
Timer Control - suitable as a staircase automatic switch with screwless terminals in connection without zero wire
Show full description
11.90 €
Price Guarantee
Shop faster with pickup at AlzaBox or in-store.
Warranty 24 months
Code:
ELBOCK137
Producer's Website:
- Reviews 1
- Help and manuals 1
- Specifications
- Photos & Videos 5
- Alternatives 6
- Accessories and suggested products
Elektrobock CS3C-4
11.90 €
In stock 3 pcs
Buy
Elektrobock CS3C-4

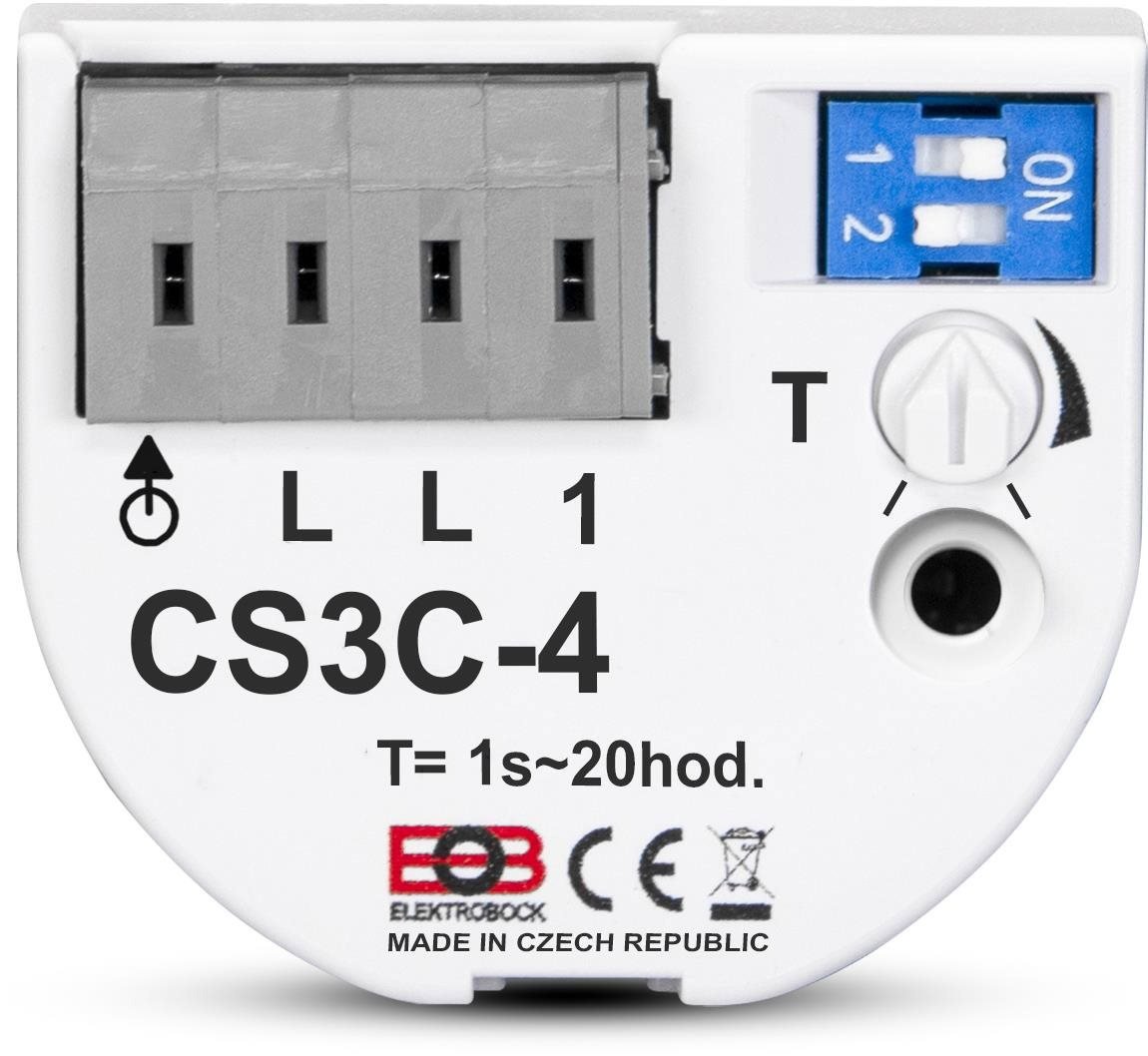

The Elektrobock CS3C-4 timer switch is an improved version of the popular CS3-4 switch, featuring screwless terminals and new electronics. The switch is suitable as a staircase timer in a no-neutral-wire configuration, which can control fans, LED bulbs or luminaires from 1 to 150W. The device switches the fan on immediately after pressing the button, but the timing itself, ranging from 1 second to 20 hours, starts only after the button is released. The main advantages of the Elektrobock CS3C-4 switch are its easy installation in an installation box and its two-wire connection. The on-time can be set using a miniature switch or a trimmer (with a small screwdriver).
Key Features of the Elektrobock CS3C-4 Timer Switch
- The Elektrobock CS3C-4 timer switch with screwless terminals is designed for installation under a switch
- Ideal as a staircase timer in a no-neutral-wire configuration
- The device allows switching of fans, light bulbs or LED lighting (1–150W)
- The on-time, ranging from 1s to 20 hours, starts after the button is released
- The advantages of the Elektrobock CS3C-4 switch are its two-phase connection and easy installation
- The on-time can be set with a rotary switch or a trimmer (using a screwdriver)
Switching element:
Triac
Resistive load:
1–150W
Inductive load:
1–150VA
LED luminaires:
1–150W
Fluorescent lamps:
10–100W
Degree of protection:
IP20 and higher (depending on installation type)
Specifications
Type
Usage
Material
Rated voltage
Number of conductors
Type
Type
Usage
Material
Material
Features
Rated voltage
Number of conductors
Colour
Colour
More Specifications
Elektrobock MTF s.r.o., Blanenská 1763/30, Kuřim 664 34, Česká Republika, +420 541 230 216, [email protected]
Note:
Specifications can be changed without notice. Images are for illustrative purposes only.
