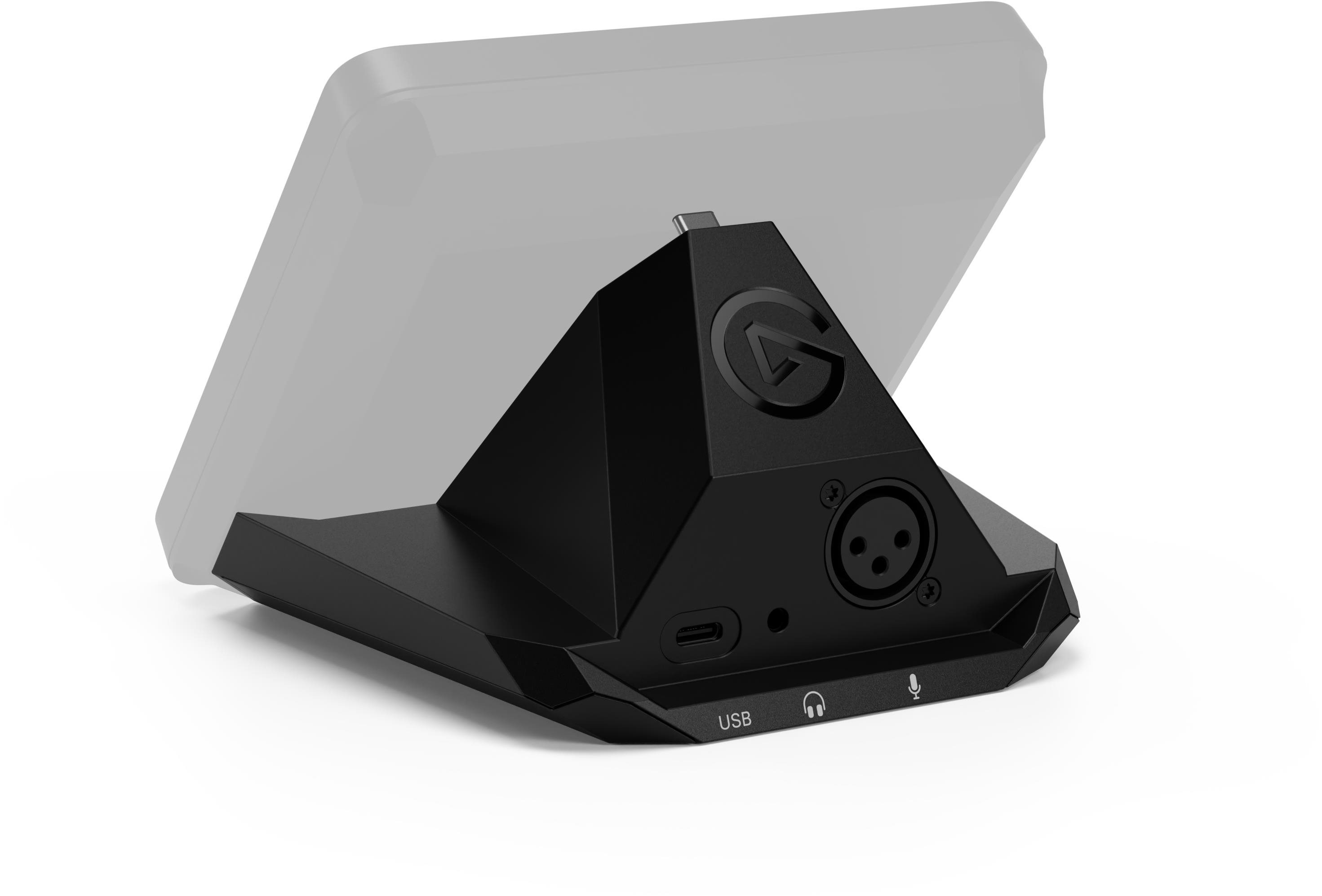

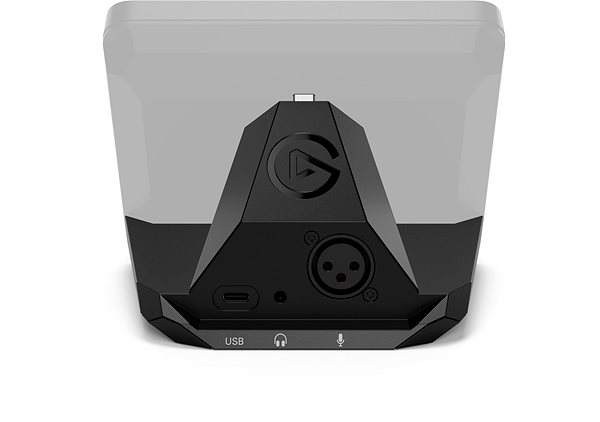

Elgato XLR Dock
Equipped with the Elgato XLR Dock, Stream Deck + becomes the ultimate audio station. Elgato XLR Dock keeps all your audio gear in one place, saving focus and desk space. Connect your high-end XLR microphone to any computer to free up desk space and manage more from a single device. Plug your XLR microphone into the back for studio-quality sound. Customise controls on the front for mixing, monitoring or virtually anything else. XLR Dock installs in a few simple steps using just a Phillips screwdriver.
Key features of Elgato XLR Dock
- Centralised audio solution combining Stream Deck + and XLR Dock for all-in-one control
- XLR microphone support with up to 75dB gain and 48V phantom power
- Customisable control of volume, mix, monitoring and functions using Stream Deck + and apps
- Microphone control, real-time audio level monitoring and audio effects via Wave Link
- Studio preamp – loud, clean sound without boosters or amplifiers
- Phantom power – brings condenser microphones to life with 48V
- Clipguard prevents distortion when you get loud
- Zero-latency monitoring – plug in your headphones and hear yourself in real time
- Single USB cable powers everything
- Clipguard is active by default after the initial setup of XLR Dock – turn it on or off in the Wave Link app
Unified audio control with Stream Deck + and XLR Dock
Stream Deck + and XLR Dock bring all your audio controls together – not just hardware, but apps too. Tap to use a voice changer or push-to-talk in Discord. Turn to adjust headphone volume. You can even monitor audio levels in real time. Everything is customisable and all in one place. With up to 75dB of gain and 48V phantom power, Elgato XLR Dock handles a wide range of dynamic and condenser microphones.
Full mic and audio control with Stream Deck + and Wave Link
Stream Deck + lets you mute the microphone with a simple tap. The fastest way is to use the Volume Controller plugin, which is pre-installed in the Stream Deck app when you first connect XLR Dock. If you use Wave Link, mute your microphone with a touch via the Wave Link plugin. To use XLR Dock, make sure you have the latest version of the Stream Deck app. For further audio settings or control, such as a multi-channel mix or effects, use the free Wave Link app. In the Stream Deck app, drag and drop the action to control gain onto any free dial using the Volume Controller or Wave Link plugin. Then turn to adjust the gain as needed. You can also monitor audio levels in real time. With the Wave Link plugin for Stream Deck +, levels display directly on the controls. Once Wave Link is installed, you can also visit the Elgato Marketplace to download audio effects.
Package contents:
XLR Dock for Stream Deck +, quick start guide
Technical specification:
Frequency response: 20Hz–20kHz
Dynamic range: 100dB (120dB with Clipguard)
Equivalent input noise (EIN): -130dBV at 60dB gain
Gain range: 0–75dB
Phantom power: 48V DC, 7mA
Maximum input level: 10V at 0dB gain (with Clipguard)
Maximum output level: 77mW
Resolution: 24-bit
Sample rate: 48kHz
Interface: USB 2.0, Type-C
Dimensions: 137×115×76mm (w×d×h)
Weight: 169g
Please note:
XLR Dock is specially made for Stream Deck + and cannot be used standalone.
