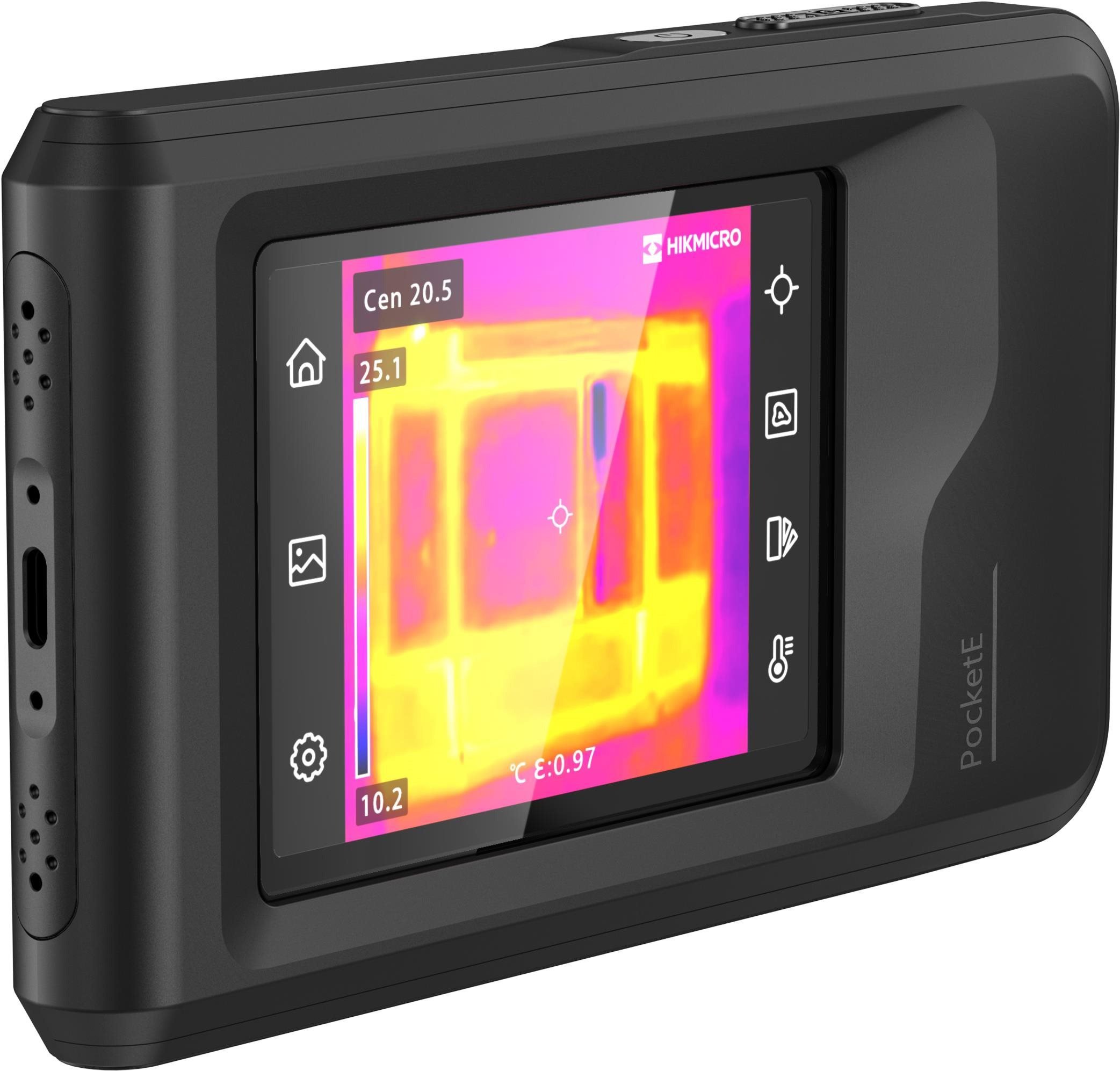

HIKMICRO Pocket E Pocket Thermal Imager
- Help and manuals
- Specifications
- Photos & Videos 12
- Alternatives 8
- Accessories and suggested products
HIKMICRO Pocket E Pocket Thermal Imager
The HIKMICRO Pocket E pocket thermocamera is designed as a full-featured replacement for classic single-point pyrometers and is particularly suitable for basic temperature control in industrial plants, temperature inspections of buildings, HVAC systems, machinery, etc. The instrument is equipped with a 96 × 96 thermal resolution infrared sensor (with 240 × 240 px super-resolution function) and a 0.3MP optical detector (640 × 480 px) for the visible spectrum. The thermal imager can measure temperatures in the range of -20 to 350 °C and, thanks to the clear visualisation of temperature differences, easily detects possible anomalies such as heat loss around windows or unwanted overheating of electrical installations and components. The HIKMICRO Pocket E camera features Wi-Fi connectivity, LED flashlight, 4 GB internal memory and an integrated rechargeable battery with up to 4 hours of battery life. Included in the package is a carrying case, USB-C to USB-A cable, and a quick start guide.
Key features of the HIKMICRO Pocket E thermal imager
- The HIKMICRO Pocket E pocket thermal imager is designed for basic temperature control, temperature inspection of buildings, air conditioning, machinery, etc.
- A 96×96 infrared thermal resolution sensor and 0.3MP optical detector are used for accurate measurement
- Measurement results are displayed on a 3.5" LCD display with 320 × 240 pixel resolution and a refresh rate of 25 Hz
- Multiple imaging modes (thermal, visual, fusion, PIP or mixed)
- An optical alarm (flashing LED) alerts you when the temperature is too high
- Automatic tracking of specific points (hottest, coldest and central)
- Integrated rechargeable battery with up to 4 hours of battery life
The Pocket E thermal imager features HIKMICRO SuperIR imaging technology
The HIKMICRO Pocket E features SuperIR image enhancement technology, which increases the base resolution of thermal images from 96×96 (9,216 pixels) to 240×240 (57,600 pixels). A large 3.5" LCD touchscreen with intuitive touch controls and a 25Hz refresh rate gives you a smooth and detailed picture when viewing and saving images.
Wide measuring range with five image modes
With full-screen sensing support and automatic hot, cold and central point tracking, you can instantly identify temperature anomalies. The camera accurately measures temperatures from -20 to 350 °C with an accuracy of up to +/-2 °C or +/-2% of the measured value, which is sufficient performance for most applications. In addition, you can select one of the built-in picture modes as needed: thermal, visual, fusion, PIP or mixed. For example, the thermal image output can be combined with the visual image output to provide more detailed and transparent measurements.
Easy wide-angle scanning with detailed thumbnails

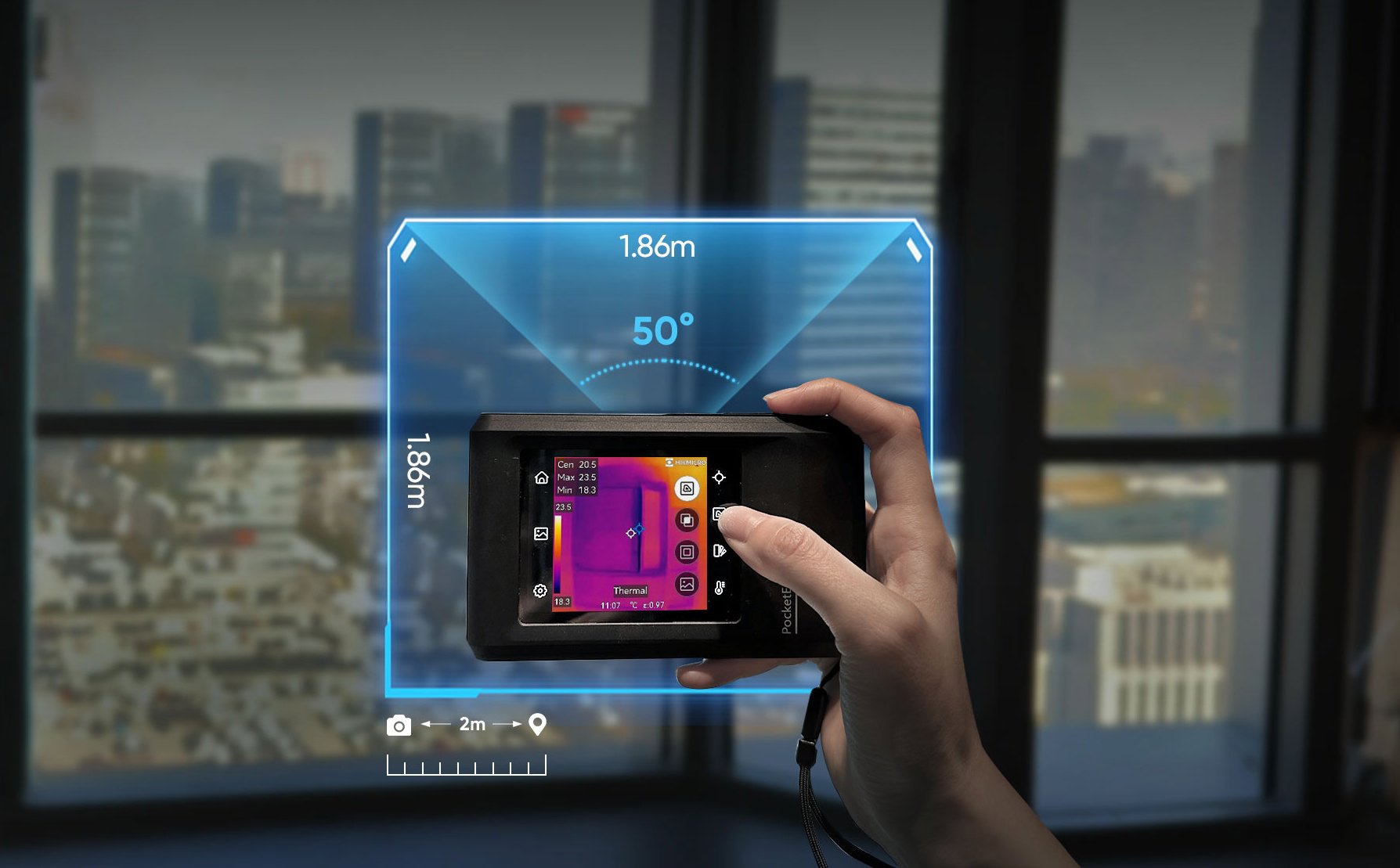

With the HIKMICRO Pocket E thermal imager you can comfortably scan wider areas. Its 50° wide-angle lens has a range of 1.86 metres and easily detects potential problems such as air or water leaks or insulation issues. The Pocket E camera also makes it easy to zoom in on details - just tap on a specific spot and the display immediately gives you a detailed and highlighted view of that area.
HIKMICRO Pocket E has 4GB internal memory and Wi-Fi connectivity
The HIKMICRO Pocket E makes working with the camera more efficient by allowing simultaneous storage of visual images and thermal images with a single click. The built-in 4GB internal eMMC memory can hold approximately 30,000 standard thermal/visual images or 20 hours of MP4 video. You can easily play back your photos and videos directly on the camera display or share them with another mobile device via built-in Wi-Fi and the HIKMICRO Viewer app.
Specifications
Imagining
Temperature range
Display
Memory
Connectivity
Equipment
Dimensions and weight
Power Supply
Included
Operating temperature
