MSI B860 GAMING PLUS WIFI
Motherboard - Intel B860, Intel 1851 socket, 4× PCIe x16, 4× DDR5 8600MHz (OC), 4× SATA III, 3× M.2, USB 3.2 Gen 2, Thunderbolt 4, RJ-45 (LAN) 5Gbps, WiFi, Bluetooth, 8ch audio, form factor: ATX
Show full description
179.90 €
Shop faster with pickup at AlzaBox or in-store.
Add to list
Warranty 36 months
Code:
AAb860g1
Producer's Website:
MSI B860 GAMING PLUS WIFI
179.90 €
Currently Unavailable
MSI B860 GAMING PLUS WIFI

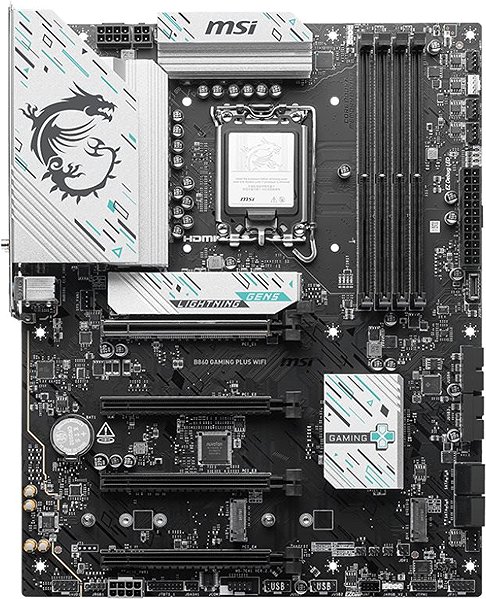

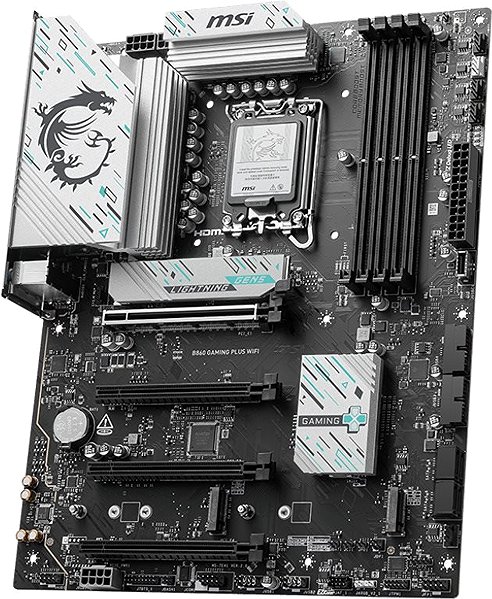

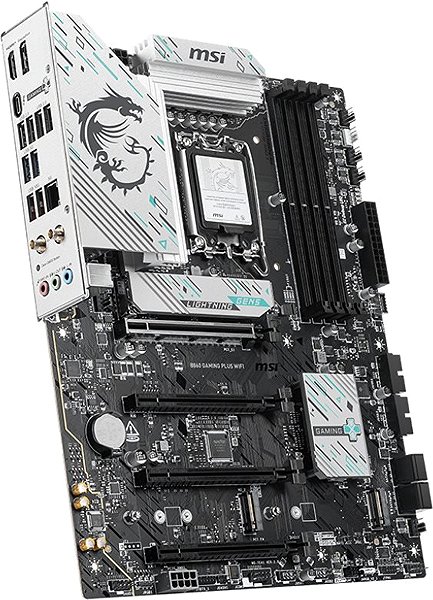

The MSI motherboard is built on the Intel B860 chipset and has the Intel 1851 socket for CPU insertion. As you would expect,, it also has a sound card which handles 8,0 channels. You will be able to utilise its network connection module with the practical Wi-Fi connection options. It is a large-format motherboard for extremely powerful setups with multiple hardware cards. For this particular model, it is neccessary to use a compatible ATX format PC case.
MSI B860 GAMING PLUS WIFI Motherboard Key Features
- Intel 1851 socket and the Intel B860 chipset
- MSI B860 GAMING PLUS WIFI size: ATX
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
MSI B860 GAMING PLUS WIFI Motherboard Connectivity
Computer memory is something you obviously can't do without , so this MSI motherboard has 4 RAM slots. You can pair it with DDR5 type DIMM operating memory. You can connect them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 8600 MHz.
MSI B860 GAMING PLUS WIFI Connectivity
The motherboard accommodates 4 graphics cards with PCI Express 16x slots. The internal interface also has a total of 3 popular M.2 connectors. In terms of USB adaptors, it's got 4 × USB 2.0, 2 × USB type 3.0 (3.1 gen1) and 2 × of the fast 3.1 (3.1 gen2) type ports.
- The motherboard has a built-in Realtek ALC897 sound card

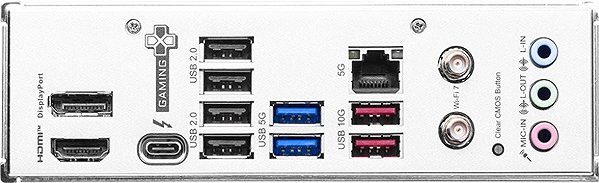

- External interfaces: Jack, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, RJ-45 (LAN) 5Gbps, Thunderbolt 4, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: COM header, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x4, PCIe 4.0 x1 and Serial ATA III
- Maximum supported RAM module clock speed: 8600 MHz
- Serial ATA III: 4 ×
Specifications
Intel 1851
Intel B860
Bluetooth, For CPU with integrated GPU, Integrated network card, Integrated sound card, PCI Express 5.0, Wi-Fi
DDR5
Format & functions
Bluetooth, For CPU with integrated GPU, Integrated network card, Integrated sound card, PCI Express 5.0, Wi-Fi
Memory
DDR5
8,600 MHz
Design
dual-channel
Advanced parameters
Realtek ALC897
Connectors
DisplayPort 1.4, HDMI 2.1, Jack, RJ-45 (LAN) 5Gbps, Thunderbolt 4, USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2
COM header, M.2 PCIe 5.0, PCIe 4.0 x1, PCIe 4.0 x4, PCIe 5.0 x16, RGB LED Header, Serial ATA III, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2 header
USB 2.0
USB 3.2 Gen 1 (USB 3.0)
USB 3.1 (3.1 gen2)
ThunderBolt
M.2 slots
Serial ATA III
Series
Series
Compatibility
Compatible processor generation
Colour
Colour
More Specifications
Micro-Star International Co Ltd. C/O MSI Computer Europe BV, Science Park Eindhoven 5706, 5692 ER, Son, Netherlands, [email protected]
The Taiwanese company MSI (Micro-Star International) has earned a solid place in the world of IT, mainly producing motherboards for desktop computers. However, it also produces high quality graphics cards, barebone computers, notebook computers, networking products, servers, and many other computer components. MSI products support the latest technologies and provide the performance necessary for all applications. Recently, the company has begun making a name for itself in the growing segment of gaming notebooks.
Note:
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
