AXAGON ADM2-AM, adapter for M.2 NVMe & SATA SSD, USB-A 10 Gbps, cable 10 cm
Adapter USB-A to m,2 NVMe and m,2 SATA - LED indication, straight ending, cable length 0.1 m
Show full description
Variants
ADM2-AM, adapter for M.2 NVMe & SATA SSD, USB-A 10 Gbps, cable 10 cm
23.90 €
In stock
ADM2-CM, adapter for M.2 NVMe & SATA SSD, USB-C 10 Gbps, cable 10 cm
25.90 €
In stock
23.90 €
Price Guarantee
Shop faster with pickup at AlzaBox or in-store.
Warranty 36 months
Code:
AG200b02h
Producer's Website:
AXAGON ADM2-AM, adapter for M.2 NVMe & SATA SSD, USB-A 10 Gbps, cable 10 cm
23.90 €
In stock > 10 pcs
Buy
AXAGON ADM2-AM, adapter for M.2 NVMe & SATA SSD, USB-A 10 Gbps, cable 10 cm

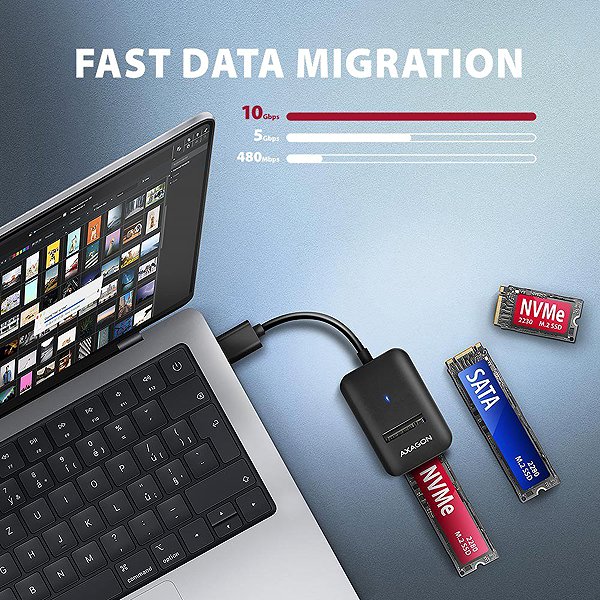

The compact AXAGON ADM2-AM M.2 adapter with a USB 10Gbps interface is designed for the easy use of M.2 NVMe or SATA SSDs. A permanently attached 10cm USB-A cable ensures a reliable connection to your computer.
Fast data transfer
The USB 3.2 Gen 2 interface delivers a transfer speed of up to 10Gb/s. This second-generation high-speed USB interface lets you enjoy the full speed of modern M.2 SSDs. The universal M.2 adapter also supports other modern features like UASP, TRIM and allows you to read S.M.A.R.T. information to monitor the drive's health. It also supports a power-saving mode when idle.
Quick drive swapping

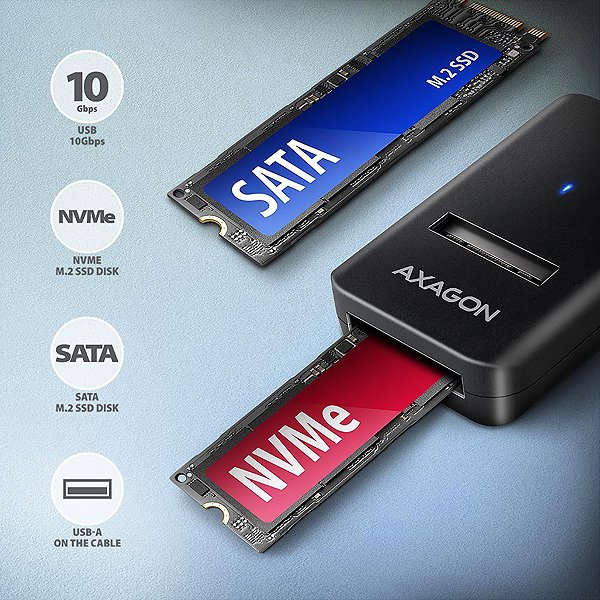

A unique feature, thanks to the chipset used, is the ability to use both M.2 NVMe and SATA drives. You don't have to worry about which type of M.2 drive the adapter is designed for – it simply reads all types. Another advantage of the adapter is how quickly you can insert a drive into the adapter's slot. Swapping drives is also easy. These features make the adapter a clever and useful tool for frequent work with different types of drives. It is an ideal assistant for testing drives, transferring data, backing up, and recovering data, etc.
Packed in no time
Thanks to its small size, the adapter is always ready and on hand. Its design doesn't hinder heat dissipation from the drive, which extends its lifespan and prevents speed reduction, known as “thermal throttling”. This USB-A to M.2 slot adapter can be used with both computers and laptops.
Input:
• USB 10Gbps (USB 3.2 Gen 2), USB-A male connector.
• Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.
Device support:
• NVMe M.2 SSDs,
• SATA M.2 SSDs,
• Designed for M-key or B+M-key cards,
• NGFF 75-pin M-key slot for M.2 drives.
Other features:
• Supports transfer speeds of 10000 / 5000 / 480 Mbit/s.
• Supports M-key or B+M-key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitations.
• Supports M.2 drives of all sizes - no length limit.
• Supports single-sided and double-sided M.2 SSDs.
• Complies with PCI Express Base Specification Revision 3.1a.
• Complies with NVM Express 1.3 specification.
• Complies with Serial ATA 3.2 specification (SATA/600), transfer speeds up to 6Gb/s (600MB/s).
• Complies with USB Mass Storage Class specification.
• The total throughput / transfer speed of the adapter is determined by the USB interface used (theoretically up to 10Gbit/s).
• The real throughput / transfer speed of the adapter is around 1000MB/s (1GB/s), limited by the USB 3.2 Gen 2 interface.
• Supports BOT (Bulk-Only Transport).
• Supports UASP (USB Attached SCSI) for faster data transfer in Windows 8 and newer.
• Supports the TRIM feature to limit the gradual degradation of SSD performance over time.
• Supports S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) system for monitoring drive health.
• Supports booting from an SSD in an external box.
• Hot Plug support allows you to connect the device while it is running.
• Full Plug and Play support.
• Power via the USB bus up to 900mA from a single USB port is completely sufficient in all cases.
• A discreet blue LED indicates connection to the computer's USB port (solid light) and data transfer (blinking).
Other information:
• Adapter dimensions: 55×37×12mm.
• Adapter weight: 23g.
• USB-A male cable length: 10cm.
Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on an up-to-date operating system and support from the device manufacturer.
Package contents:
• M.2 adapter with a fixed 10cm cable,
• multi-language manual.
Specifications
Use
Control inputs/outputs
Transfer speed
Number of connectors
Usage
Use
Use
Connection
Control inputs/outputs
Transfer speed
Number of connectors
Use
Usage
Type
Male connectors
Double-sided connector
Male connectors
Connector
Double-sided connector
Connector
Type and number of connectors
1. Male connector - Type
1. Male connector - Standard
1. Male connector - Quantity
Maximum throughput of first male connector
1. Female connector - Type
1. Female connector - Standard
1. Female connector - Quantity
2. Female conector - Type
2. Female connector - Standard
2. Female connector - Quantity
Standards
Standards
Cable construction
Cable length
Terminate the connector
Features
Features
Colour
Supported drives
Drive interfaces
Supported disk formats
Number of free drive bays
Maximum total capacity
Connectors
Connectors
Standards
Features and functions
Features
Material
Material
Dimensions and weight
Width
Height
Depth
More Specifications
Note:
This product is not an independently functional unit and may require professional installation.
Product lines:
AXAGON ADM2-M
Specifications can be changed without notice. Images are for illustrative purposes only.
